K-LD2 Radar Transceiver HOT
※주문수량별 가격 (20개이상 주문시 상담문의)
1개 | 20개 | 100개 |
110,000 | 90,000 | 85,000 |
K-LD2 Radar Transceiver
Key Features:
Small and low cost digital 24 GHz radar motion detector
Detection distance up to 15m (human) 30m (cars)
High immunity against interferences
Integrated FFT signal processing with digital outputs
Sensitivity and hold time can be set using analogue inputs
Advanced detection data read-out over serial interface
Wide power supply range from 3.2 to 5.5V

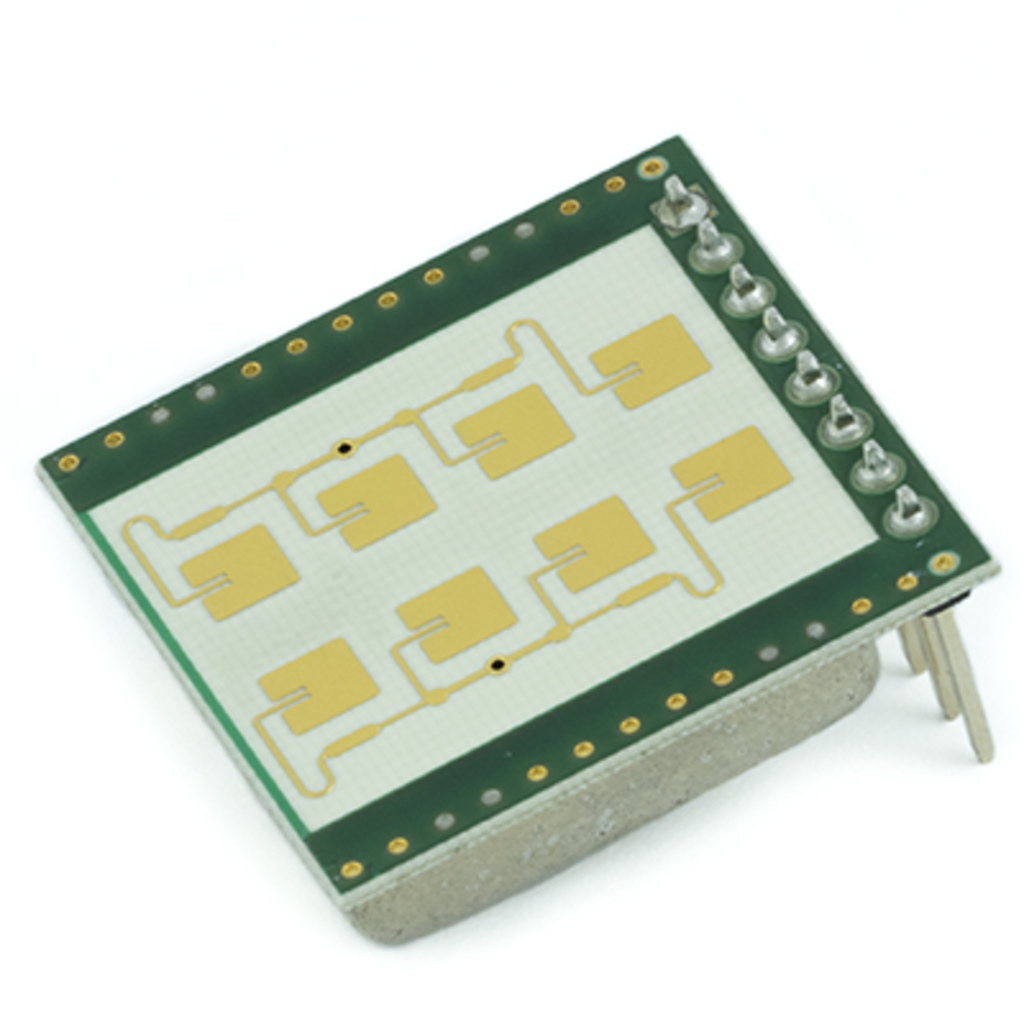

2 × 4 patch antenna with 80° / 34° beam aperture
Description
The K-LD2 is a fully digital and low cost radar movement detector. The digital structure makes it very easy to use in any stand-alone or MCU based application where a movement detection or speed measurement is required.
The sensor includes a 2 x 4 patch radar front-end with an asymmetrical beam and a powerful signal processing unit with two digital outputs for signal detection information. The sensitivity and the hold time are adjustable using analogue inputs with potentiometers. The serial interface features a powerful command set to read-out advanced detection data or to fully customize the detection algorithm.
There is no need to write own signal processing algorithms or handle small and noisy signals. This module contains everything that is necessary to build a simple, yet reliable movement detector.
A very small footprint of 25 x 25 x 6.5mm gives maximum flexibility in the product development process.
A powerful evaluation kit (K-LD2-EVAL) with signal visualization on a PC is available.
Typical Applications:
Door Opening
Indoor automation
• Automatic light activation
• Air-conditioning active if room is occupied
Movement detection
• Activate light on advertising boards
• Attract attention to an object
Speed measurement
• Inform driver of his actual speed
• Measure distances between vehicles
| Data Sheet |
RF Beam DataSheet_18. K-LD2 Radar Transceiver : CRAECA 판매 제품 각종 자료실 (rndsuper.com)
