레이더 모듈

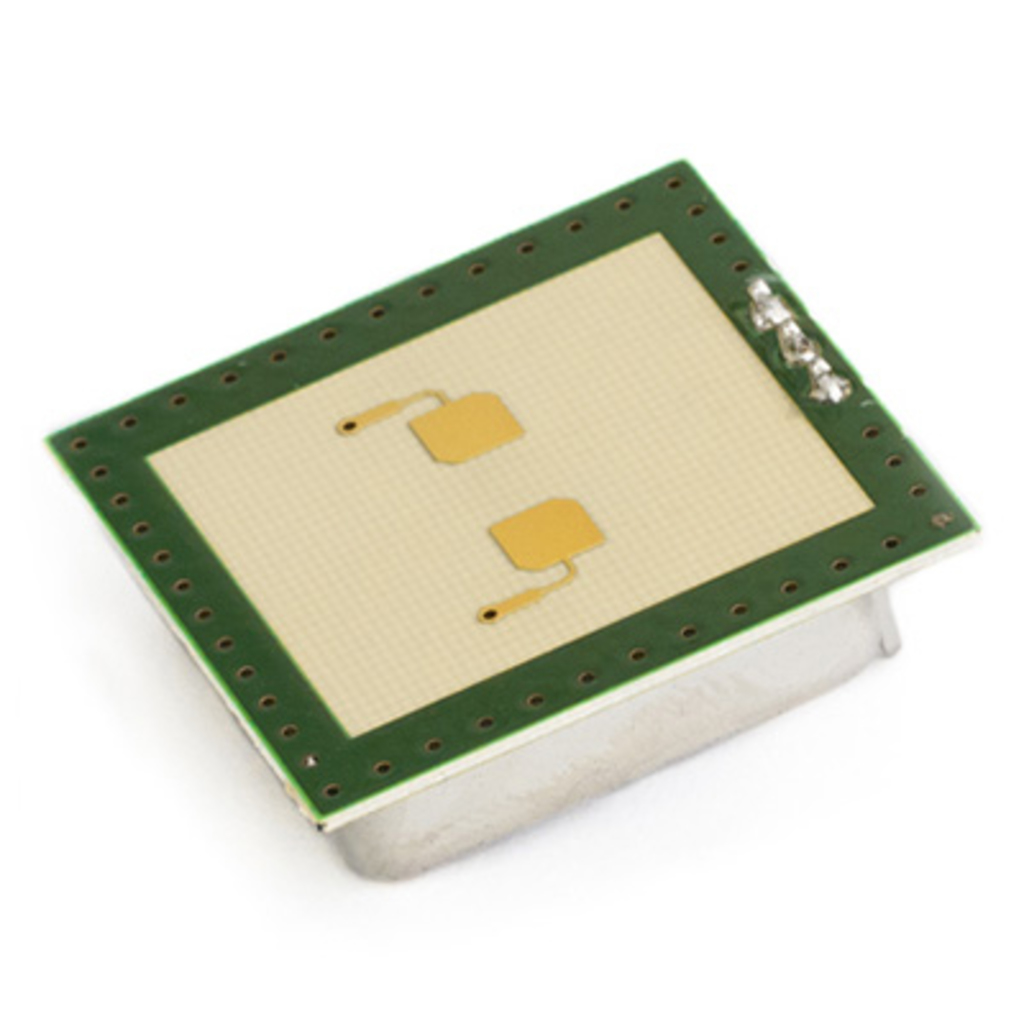

K-LC3 Wide Angle Doppler Transceiver
*※ 주문수량별 가격 (20개이상 주문시 상담 문의)
1개 | 20개 | 100개 |
46,068 | 35,376 | 28,248 |
Typical Applications:AK-LC3 Wide Angle Doppler Transceiver
Key Features:
24GHz K-band
138°x132° Pattern
Circular Pol. Antenna
50MHz IF Bandwidth
25x25mm² small
6mm thickness
Lowcost
Description
K-LC3 is a movement sensor optimized for room surveillance and security applications. It covers a broader volume than any other planar radar available today. It is ideally suited for ceiling or wall mounting.
K-LC3 covers over 5 times more volume than a traditional 2 x 1 patch radar transceiver. Field pattern is nearly symmetrical due to its advanced antenna design. K-LC3 is extremely small and lightweight. In building automation, this module is an alternative or complement for infrared PIR or AIR systems
K-LC3 models
K-LC3: 5 Voltage type
K-LC3_V2: 3.3V type 8not on stock, on request)
Ask for samples via info@rfbeam.ch
A powerful starterkit with signal conditioning and visualization is available.
Get solutions
Shorten your time to market with RFbeam products and consulting.
Or do you need customized hardware or software? Ask RFbeam Microwave for customer specific research and design!
Typical Applications:
Door Opening
Vital Sign monitoring
• Measure heartbeat
• Breathing rate
Indoor automation
• Automatic light activation
• Air-conditioning active if room is occupied
Intrusion Alarm
• Detection movement in room
• Measure distance to object
| Data Sheet |
RF_Beam DataSheet_37.K-LC3 Radar Transceiver : CRAECA 판매 제품 각종 자료실 (rndsuper.com)
