24GHz

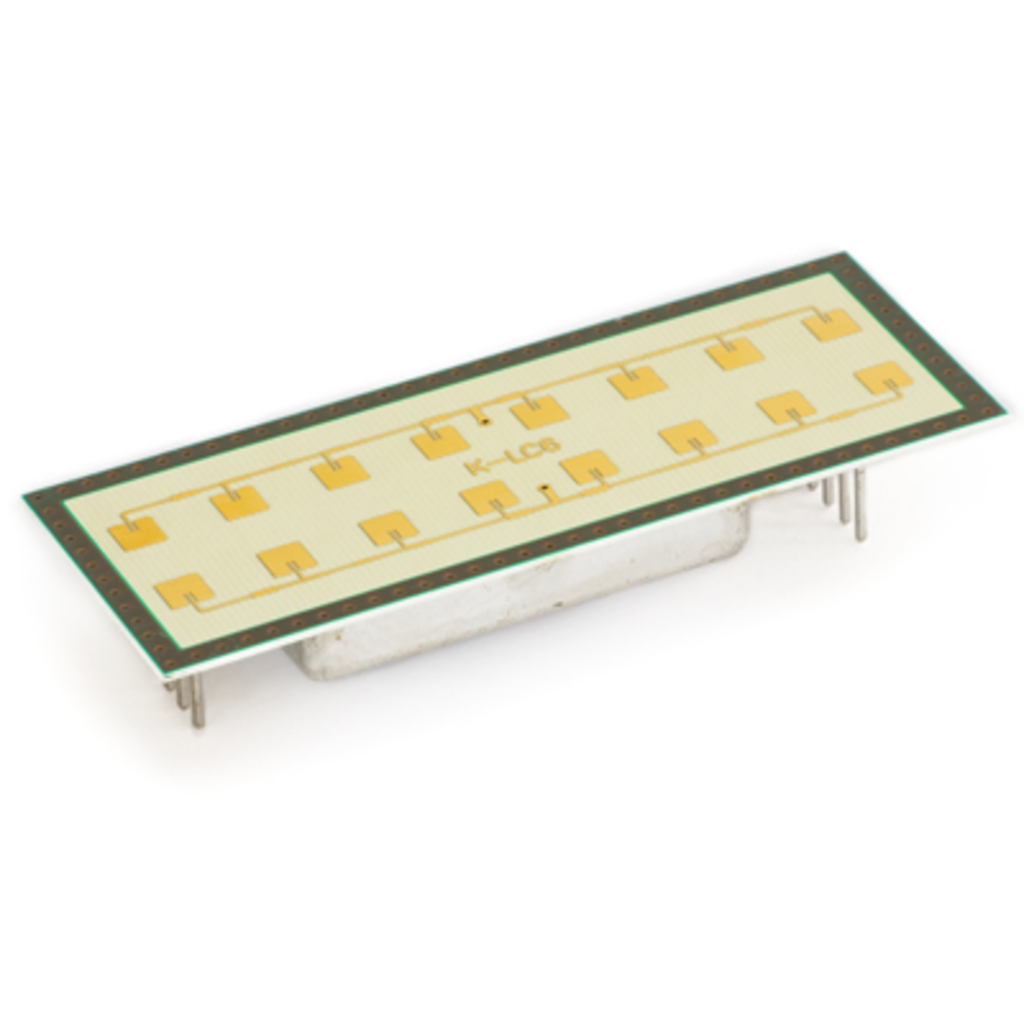

K-LC6_V2 Radar Transceiver
※ 주문수량별 가격 (20개이상 주문시 상담문의)
1개 | 20개 | 100개 |
146,520 | 112,860 | 90,288 |
Typical Applications:K-LC6 Radar Transceiver
Key Features:
24GHz short range transceive
Narrow–wide asymmetrical field pattern
Beam aperture 80°/12°
High sensitive LNA receiver
250MHz wide sweep FM input
I/Q IF outputs
Optional IF amplifier ( K-LC6_V2 )
Compact size: 66mm × 25mm × 6mm
Description
K-LC6 is a dual channel Doppler Radar module with an asymmetrical narrow beam for short to medium distance sensors. It is ideally suited for person or vehicle movement and presence sensors.
K-LC6 is a dual channel Doppler Radar module with an asymmetrical narrow beam for short to medium distance sensors. It is ideally suited for person and vehicle movement and presence sensors. This module includes an RF low noise amplifier ( LNA ) for best signal to noise performance. Dual IF I and Q allow movement direction detection and high performance signal processing. The optional internal IF amplifier is available in version K-LC6_V2. An extremely slim construction with only 6 mm depth gives you maximum flexibility in your equipment design. Powerful starterkits with signal conditioning and visualization are also available.
A Bright LED Future
LED technology has made incredible progress.
Now it is time for adequate activation sensors.
K-LC6 is optimized for intelligent and cost optimized LED lighting applications.
RFbeam is ready for supporting you!
Typical Applications:
Vital Sign monitoring
• Measure heartbeat
• Breathing rate
Movement detection
• Activate light on advertising boards
• Attract attention to an object
Speed measurement
• Inform driver of his actual speed
• Measure distances between vehicles
| Data Sheet |
RF Beam DataSheet_17. K-LC6_V2 Radar Transceiver : CRAECA 판매 제품 각종 자료실 (rndsuper.com)
